UNF SOMUNLU 90°
UNF bağlantı sistemlerinde 90° bağlantı sağlayan hortum rakoru. Kompakt yapısı sayesinde kolay montaj imkânı sunar.

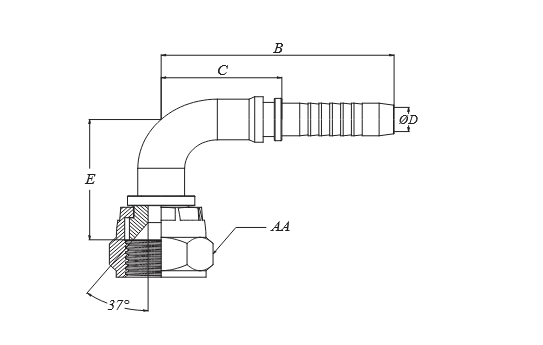

Teknik Özellikler
| MALZEME KODU MATERIAL CODE |
HORTUM ÖLÇÜSÜ HOSE SIZE |
SOMUN ÖLÇÜSÜ NUT SIZE |
B | C | E | ØD | AA |
|---|---|---|---|---|---|---|---|
| KRPUS90-316716 | 05 / 3/16 | 7/16-20 | 45 | 25 | 23 | 3.2 | 16 |
| KRPUS90-14716 | 06 / 1/4 | 7/16-20 | 50 | 25 | 26 | 4 | 16 |
| KRPUS90-1412 | 06 / 1/4 | 1/2-20 | 50 | 25 | 28 | 4 | 17 |
| KRPUS90-14916 | 06 / 1/4 | 9/16-18 | 50 | 25 | 28 | 4 | 19 |
| KRPUS90-51612 | 08 / 5/16 | 1/2-20 | 55 | 28 | 29 | 5.5 | 17 |
| KRPUS90-516916 | 08 / 5/16 | 9/16-18 | 55 | 28 | 30 | 5.5 | 19 |
| KRPUS90-51658 | 08 / 5/16 | 5/8-18 | 55 | 28 | 30 | 5.5 | 21 |
| KRPUS90-51634 | 08 / 5/16 | 3/4-16 | 55 | 28 | 31 | 5.5 | 24 |
| KRPUS90-38916 | 10 / 3/8 | 9/16-18 | 61.5 | 32.5 | 32 | 7 | 19 |
| KRPUS90-3858 | 10 / 3/8 | 5/8-18 | 61.5 | 32.5 | 32 | 7 | 21 |
| KRPUS90-3834 | 10 / 3/8 | 3/4-16 | 61.5 | 32.5 | 33 | 7 | 24 |
| KRPUS90-3878 | 10 / 3/8 | 7/8-14 | 61.5 | 32.5 | 35 | 7 | 27 |
| KRPUS90-1234 | 12 / 1/2 | 3/4-16 | 69.5 | 37.5 | 36 | 9 | 24 |
| KRPUS90-1278 | 12 / 1/2 | 7/8-14 | 69.5 | 37.5 | 37 | 9 | 27 |
| KRPUS90-5878 | 16 / 5/8 | 7/8-14 | 84 | 45 | 45 | 12 | 27 |
| KRPUS90-581116 | 16 / 5/8 | 1"1/16-12 | 84 | 45 | 48 | 12 | 32 |
| KRPUS90-341116 | 19 / 3/4 | 1"1/16-12 | 100 | 57 | 53 | 14 | 32 |
| KRPUS90-111516 | 25 / 1" | 1"5/16-12 | 129 | 76 | 62 | 19 | 41 |
| KRPUS90-114158 | 32 / 1"1/4 | 1"5/8-12 | 140 | 80 | 85 | 25 | 50 |
| KRPUS90-112178 | 38 / 1"1/2 | 1"7/8-12 | 175 | 105 | 101 | 29 | 55 |
