BSP SOMUNLU DÜZ


BSP dişli sistemlerde düz bağlantı sağlayan hortum rakoru. Basınçlı hatlarda güvenli montaj ve sızdırmazlık sunar.


Teknik Özellikler

MALZEME KODU
MATERIAL CODE		 HORTUM ÖLÇÜSÜ
HOSE SIZE		 SOMUN ÖLÇÜSÜ

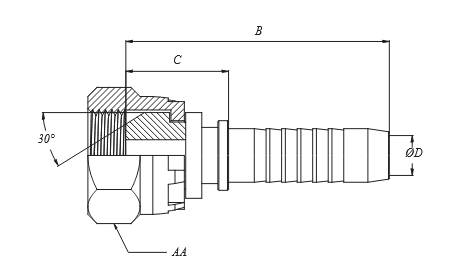

NUT SIZE		 B C ØD AA
KRPBSD-31618 05 / 3/16 R1/8-28 36 15 3.2 14
KRPBSD-31614 05 / 3/16 R1/4-19 38 17 3.2 17
KRPBSD-1418 06 / 1/4 R1/8-28 40.5 15 4 14
KRPBSD-1414 06 / 1/4 R1/4-19 42.5 17.5 4 17
KRPBSD-1438 06 / 1/4 R3/8-19 45 20 4 22
KRPBSD-1412 06 / 1/4 R1/2-14 48 23 4 27
KRPBSD-51614 08 / 5/16 R1/4-19 44.5 17.5 5.5 17
KRPBSD-51638 08 / 5/16 R3/8-19 47 20 5.5 22
KRPBSD-51612 08 / 5/16 R1/2-14 50 23 5.5 27
KRPBSD-3838 10 / 3/8 R3/8-19 50 20 7 22
KRPBSD-3812 10 / 3/8 R1/2-14 53 23 7 27
KRPBSD-1238 12 / 1/2 R3/8-19 53.5 20.5 9 22
KRPBSD-1212 12 / 1/2 R1/2-14 56.5 23.5 9 27
KRPBSD-1258 12 / 1/2 R5/8-14 59 27 9 30
KRPBSD-1234 12 / 1/2 R3/4-14 60.5 27.5 9 32
KRPBSD-5812 16 / 5/8 R1/2-14 64.5 24.5 12 27
KRPBSD-5858 16 / 5/8 R5/8-14 67 27 12 30
KRPBSD-5834 16 / 5/8 R3/4-14 67.5 27.5 12 32
KRPBSD-5811 16 / 5/8 R1"-11 74 34 12 41
KRPBSD-3434 19 / 3/4 R3/4-14 72 28 14 32
KRPBSD-3411 19 / 3/4 R1"-11 78 34 14 41
KRPBSD-1111 25 / 1" R1"-11 88 34 19 41
KRPBSD-11114 25 / 1" R1"1/4-11 88.5 34.5 19 50
KRPBSD-114114 32 / 1"1/4 R1"1/4-11 95.5 36 25 50
KRPBSD-112112 38 / 1"1/2 R1"1/2-11 111.5 39.5 29 55
KRPBSD-2222 50 / 2" R2"-11 103.5 43.5 41 70
KRPBSD-212212 64 / 2"1/2 R2"1/2-11 109 49 54 90
— 76 / 3" R3"-11 125 60 63 96
